Item

Model

98TSAM

Panel

LCD Size

98″

LCD Brand

LG

Panel Model

LC980DQD-FGF1

Light source

LED Backlight

Resolution

3840 x 2160 (pixels)

Brightness (typ)/(min)

500 cd(typ.)

Contrast Ratio(typ)

1300:1 (typ.)

Response Time(ms)

5ms (typ.)

Pixel Pitch

0.5622 mm x 0.5622 mm

Scan Speed

30 Hz

View angle

178°(H) / 178°(V)

Life Time

30,000 hrs (min.)

Color Saturation(x% NTSC)

72%

View area

2158.848 mm × 1214.352 mm

Colors

1.06B(10bit)

Touch

Touch Frame Type

10 Points IR Touch

Tempered Glass

5mm Tempered Glass

Glass Transmission

>92%

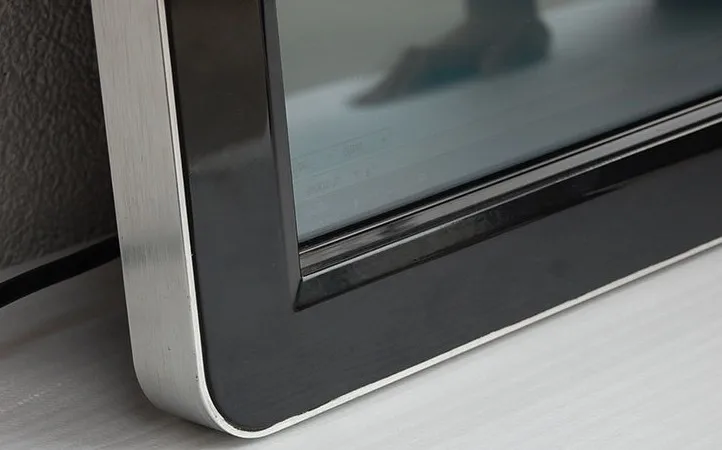

Frame Material

Aluminum

Touch Resolution

7680(W) x 4320(D)

Minimum Touch Object

5mm

Touch Accuracy

< 3mm

Response Time

<10ms

Input Method

Finger or touch pen

Theory Clicks

Unlimited

Light resistance

Available

Android System

Solution

MSD6A818

CPU

Quad core, ARM cortex A7,1.2Ghz

GPU

Mali-450

RAM/ROM

1GB DDR3/4GB

OS

Android 4.2.2

Interface

HDMI IN

*3

4K*2K

*2

VGA

*1

PC-AUDIO

*1

Y PB PR

*1

LAN

*1

AV

*1

TV IN

*1

TV-MIC

*1

HDMI OUT

*1

AV OUT

*1

EARPHONE

*1

COAXIAL

*1

TV-AUDIO

*1

RS232 Remote Control

RS232-IN*1; RS232-OUT*1

MEDIA-USB

*2

PC-USB

*2

TOUCH-USB

*2

Power

Voltage

100 V ~ 240 V, 50-60 Hz

Maximum (Watt)

≤540W

Standby (Watt)

≤0.5W

Touch Frame Electrical Characteristics

Connect type

A type male USB head+PH2.0-4P

Communication type

USB2.0 Full speed

Power supply

USB power

Voltage

DC+5V±5%

Static Level

EN 6100-4-2 2008: 3 Level, Air discharge 8KV

Environment

Working Temperature

0°C ~ 40°C

Storage Temperature

Minus 10°C ~ 60°C

Working Humidity

20% ~ 80% RH Non-Condensing

Storage Humidity

10% ~ 60% RH Non-Condensing

Lanuage

OSD

English

Structure

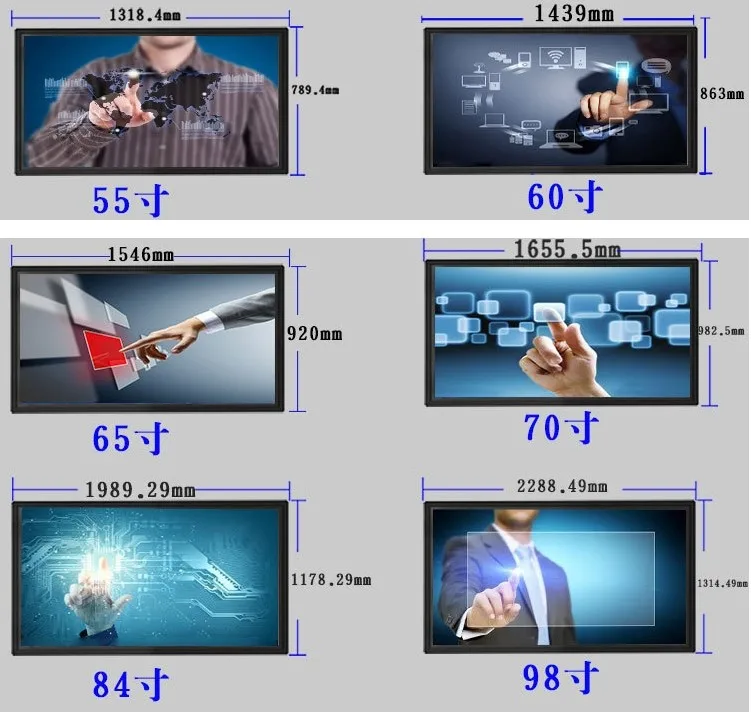

Product Size (mm)(W x D x H)

2245.4 * 114.5 * 1321.8 mm

Package Size (mm)(W x D x H)

2525 * 435 * 1870mm(Heavy Carton)

N.W

162Kg±1.5Kg

G.W

214Kg±1.5Kg

Case Material

Metal

Case color

Black

Frame width(T/B/L/R)

40 / 61 / 40 / 40 mm

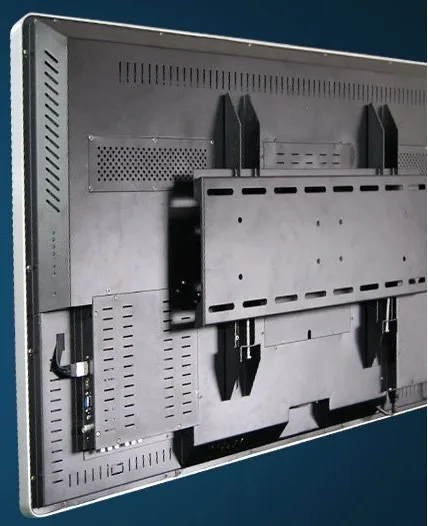

VESA

6-M8 Screw hole 800*(400+300)mm

Speaker

10W * 2

Packaging / Accessories

Remote control

*1

Power Cord

*1

Touch Pen

*2

Qualified certificate

*1

Warranty card

*1

OPS PC (option)

I3

Chipset

INTEL® Haswell i3-4100M

CPU

Dual Core, 2.50 GHz

RAM

4G RAM (DDR3L)

HDD

500G (West Digital)

Graphics

Independent Graphic Card

Wireless

WIFI 802.11b/g/n

Interface

USB2.0 x 4; USB3.0 x 2,

OS

Windows 10 supported.

OPS PC (option)

I5

Chipset

INTEL® Haswell i5-4200M

CPU

Dual Core, 2.50 GHz

RAM

4G RAM (DDR3L)

HDD

500G (West Digital)

Graphics

Independent Graphic Card

Wireless

WIFI 802.11b/g/n

Interface

USB2.0 x 4/ USB3.0 x 2

OS

Windows 10 supported
