Jianshu Smart Home Control Panel,Dimmer and Background Music Player,6” Switch Panel in-Wall Touchscreen Control for Various Tuya Smart Appliances

Aabout S8E 6 Inches Tuya control panel

* Wall-mounted concealed structure, simple installation mode, no need to transform the wall surface, any collocation.

* 6-inch HD LCD, G+F process five-point touch, four-array microphone noise reduction, light sensing, 1W two-channel speaker.

* Smart home interconnection, AI voice interaction, scenario mode, Zigbee gateway function, device automation, remote APP control.

* It can easily realize the precise control of intelligent devices such as lighting, curtains, air conditioners, etc., without hands-on, voice controllable, and compatible with most graffiti ecological devices.

* Customize the linkage scene, touch the panel or wake up by voice, and you can quickly switch the scene mode.

UI languages: Chinese, English, Russian

S8E Multi Functional intelligent Central Control Screen other function

1. Voice interaction: 5-7M noise reduction wake-up, off-line wake-up, on-line control, “Xiao Zhi Butler” answers questions and answers, 4-channel microphone.

2. Gateway function:Zigbee gateway capability, which can connect 100+ sub-devices, and multi-category graffiti ecological devices can be controlled at will.

3. Local switch: supports local 2-way switch, which can be used for room lighting circuit, such as living room lamp, bookcase lamp, etc.

4. Music playback:Two-channel speaker output, exclusive content service “QQ Music” can be customized, etc. Light sensing: according to the ambient light brightness, automatically adjust the screen brightness, and protect your eyes comfortably.An intelligent central control can control the intelligent switches, sockets, lights, air conditioners, curtains, door locks, security, sensors and other equipment in the room, and easily realize voice control of the whole family.

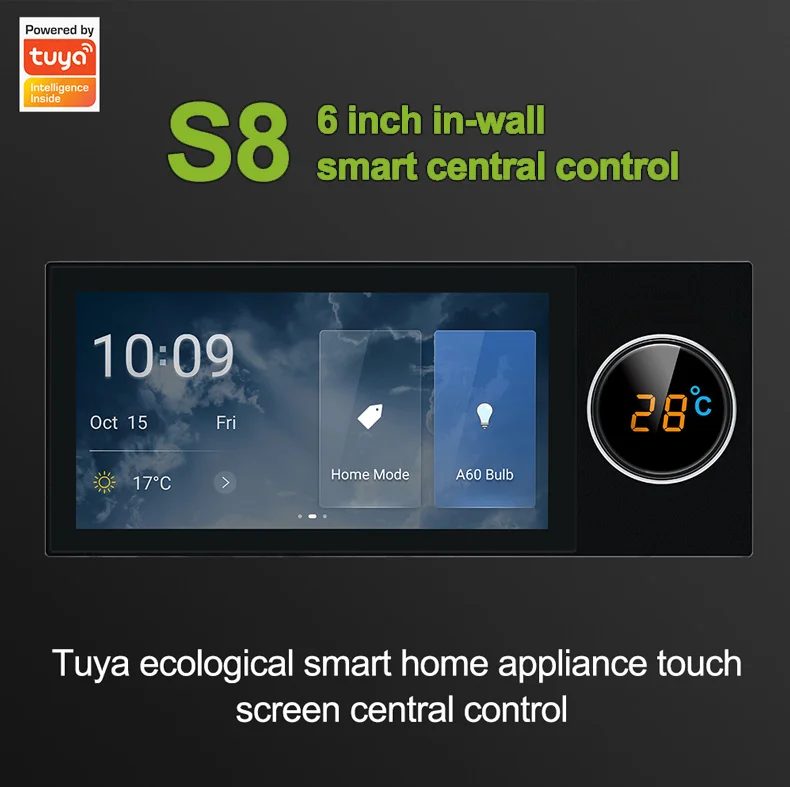

S8E 6 inch in-wall  Smart central control

Tuya ecological smart home Appliance touch screen central control

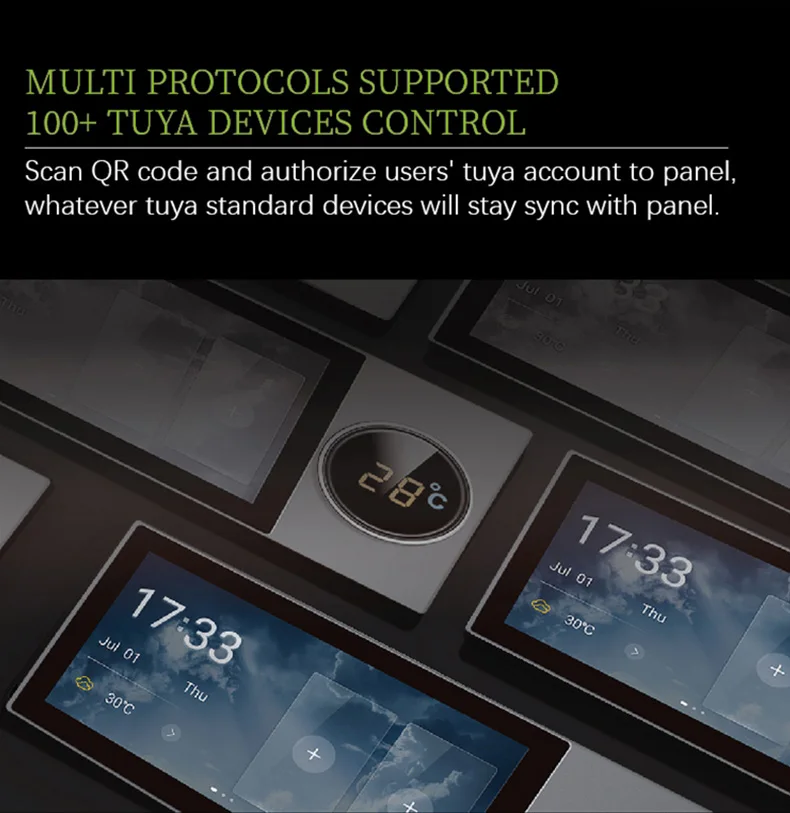

MULTI PROTOCOLS SUPPORTED 100+ TUYA DEVICES CONTROL

Scan QR code and authorize users’ tuya account to panel, whatever tuya standard devices will stay sync with panel.

SETTING WHATEVER SCENES YOU WANT

Create a new living experience for you

Get Up Mode ：Turn on all my lights, Open all my curtains, Checking the real time date weather todya.

Bathing Mode:  Turn on all my bathroom lights, Close my bathroom curtain, Open my boiler thermostat

Sleep Mode: Turn off all my lights, Close my bedroom curtain, Turn on my air conditioner

THIS IS A MORE THOUGHTFUL HOUSEKEEPER

High Definition 6 inches screen, Scenes interactions, Zigbeen Gateway CCS Panel

Light induction, Automatically adjust screen brightness

Accord to that brightness of ambient light

Automatically adjust the brightness of the screen,

Keep the horizon clear.

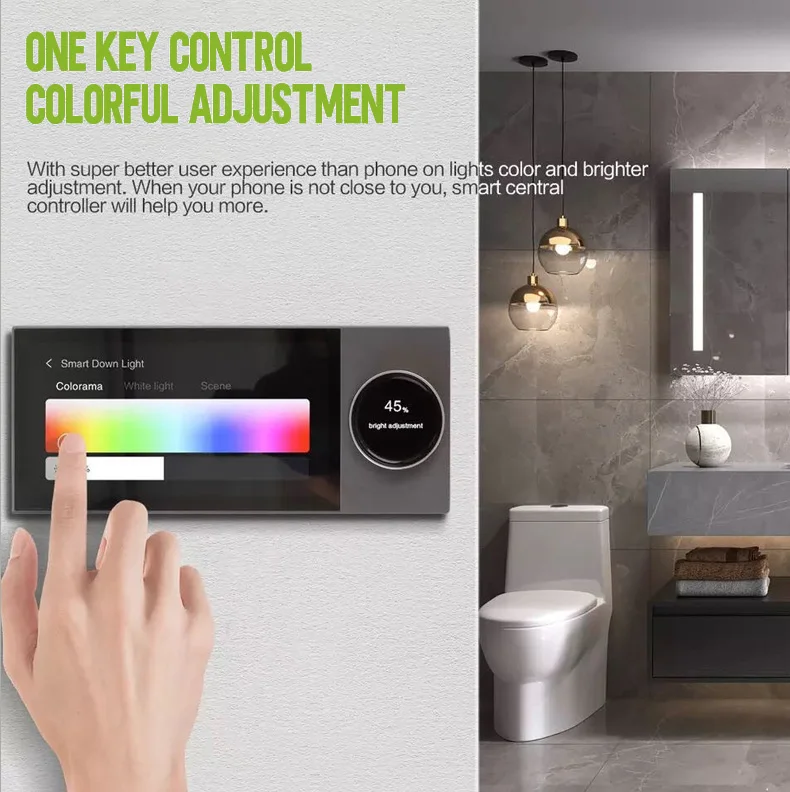

ONE KEY CONTROL COLORFUL ADJUSTMENT

With super better user experience than phone on lights color and brighter adjustment.

When your phone is not close to you, smart central controller will help you more.

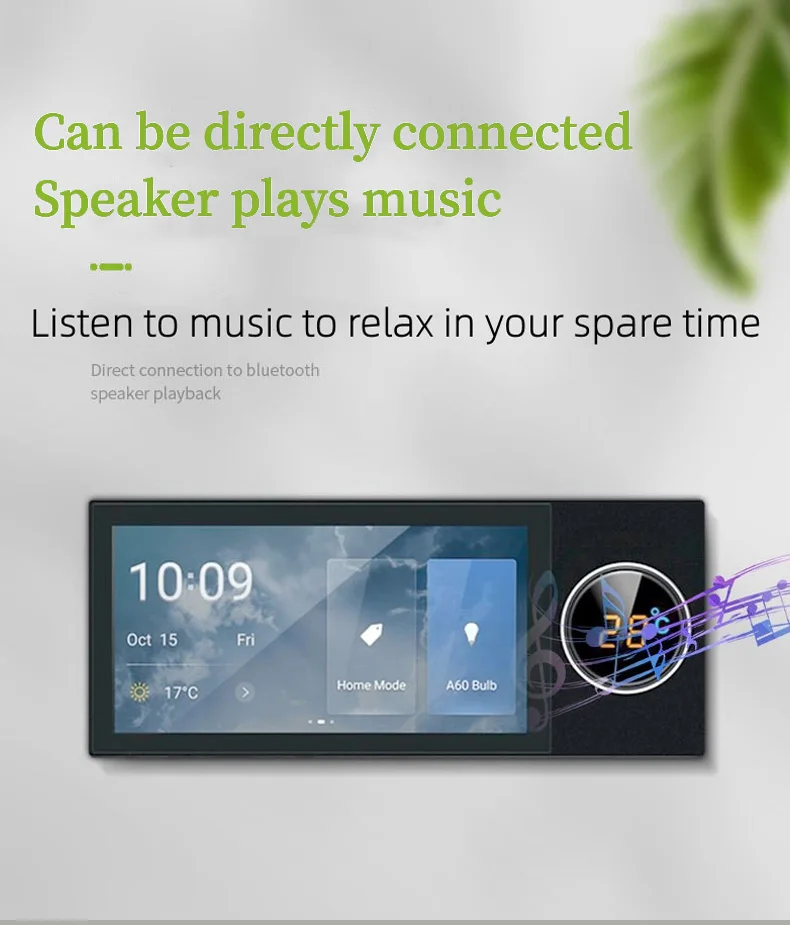

Can be directly connected Speaker plays music

Listen to music to realx in your spare time

Direct connection to Blutooth speaker playback.

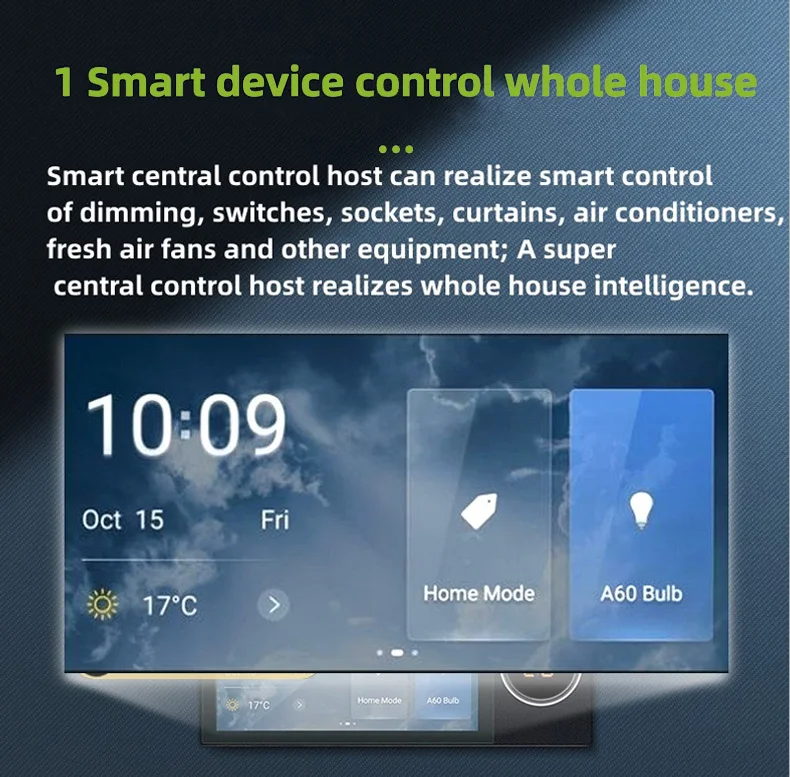

1 Smart device control whole house

Smart central control host can realize smart control of dimming, switches, sockets, curtains, air conditioners, fresh air fans and other equipment;

A supercentral control host realizes whole house intelligence.

Multiple ways to interact

1. Touch: Simple and elegant operation interface, you can control the device with one dick

2. App control: You can remotely control the device and scene status anytime and anywhere

3. Voice control : Remote voice control equipment and scenes to meet your various needs

4:  Linkage: The intelligent scene mode can be set, and the settingconnection of the sensor can be linked to the scene.

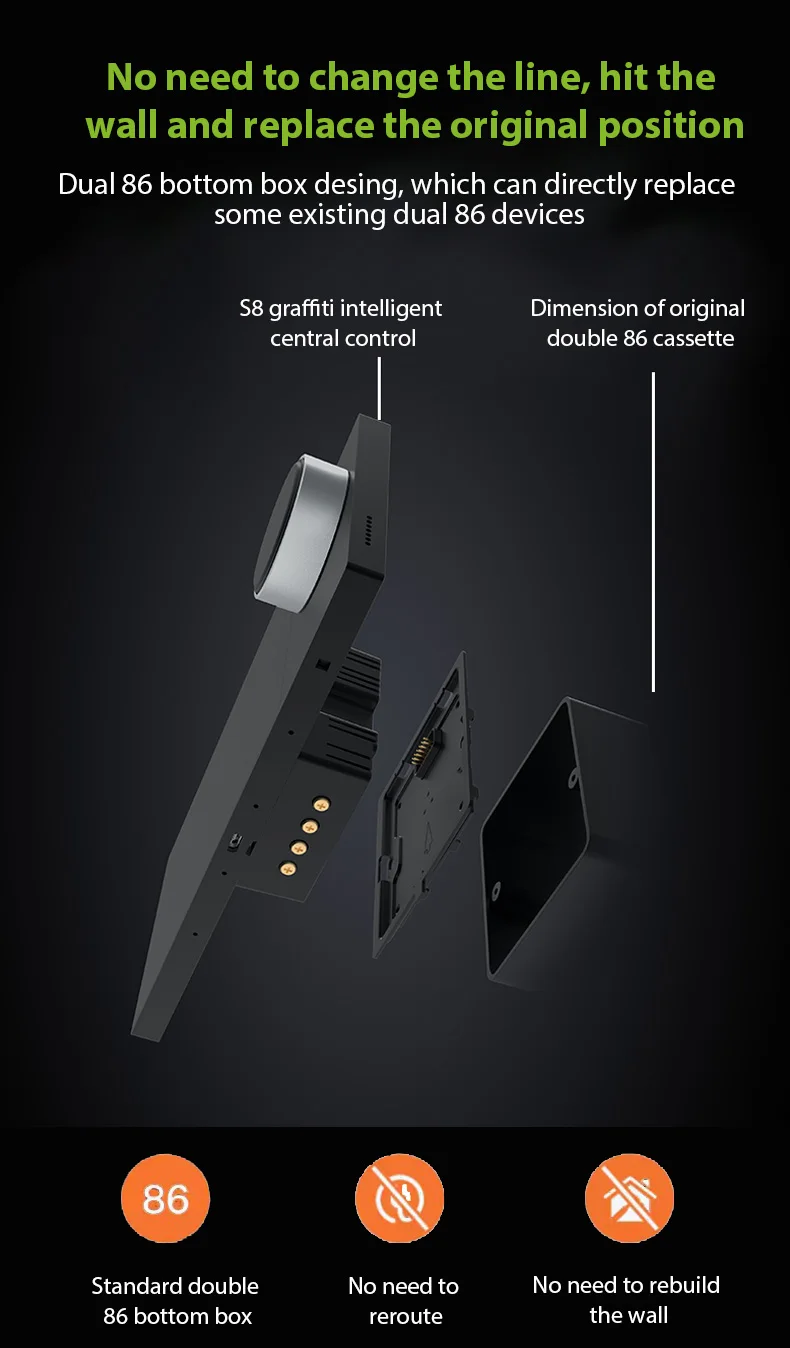

No need to change the line, hit the wall and replace the original position

Dual 86 bottom box desing, which can directly replacesome existing dual 86 devices

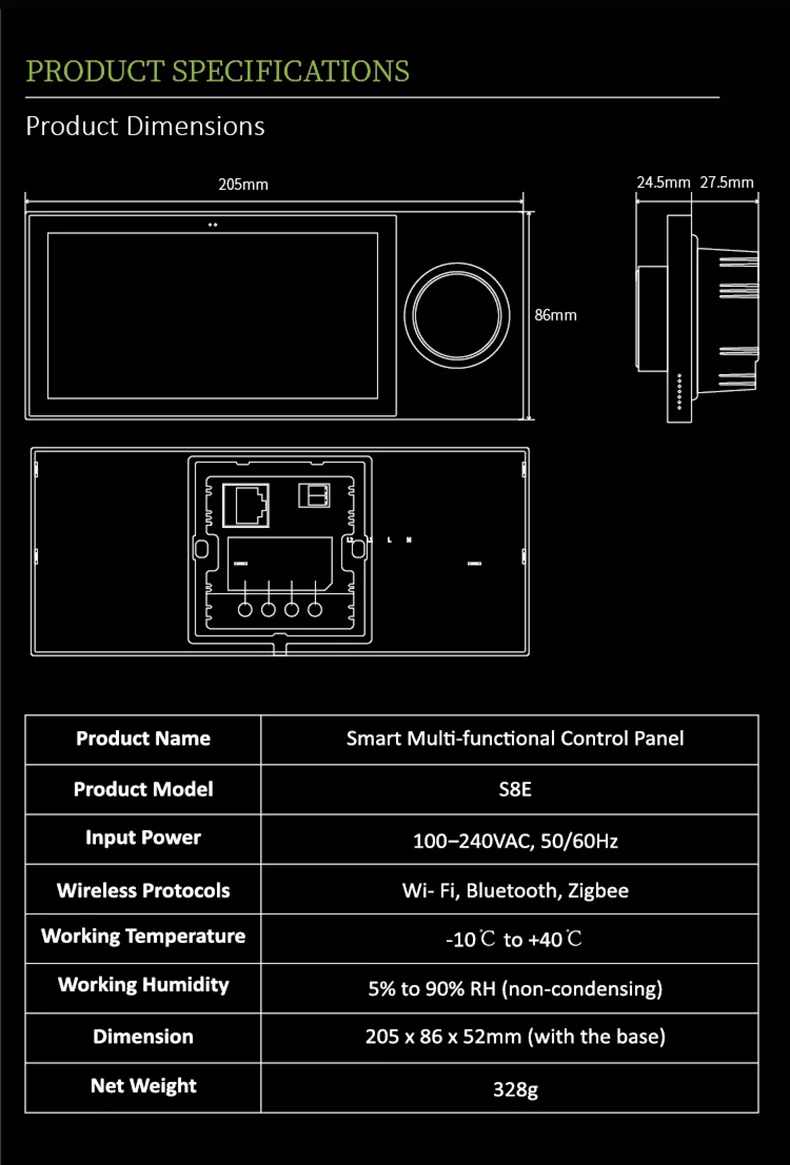

S8E Smart Control panel specifications

CPU：PX30 quad-core Cortex-A35

Firmware: Android 8.1;RAM:2GB&ROM:8GB

Screen: large screen 6 inches 720*1440 multi-touch/small screen 1.22 inches 240*204 multi-touch

RS485: half-duplex 3.81MM interface terminal

Wired network: 10M/100M adaptive Ethernet

Wireless network: 802.11b/g/n wireless fidelity 150Mbps 2.4GHz

Zigbee:PHY/MAC Zigbee network protocol stack

Supported languages: Chinese, English, Russian

User Manual :

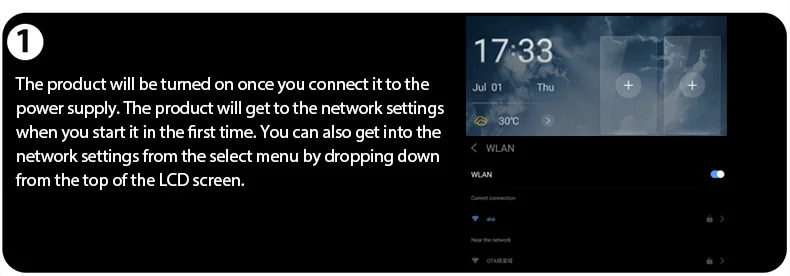

(1) The product will be turned on once you connect it to the power supply. The product will get to the network settings when you start it in the first time. You can also get into the network settings from the select menu by dropping down from the top of the LCD screen.

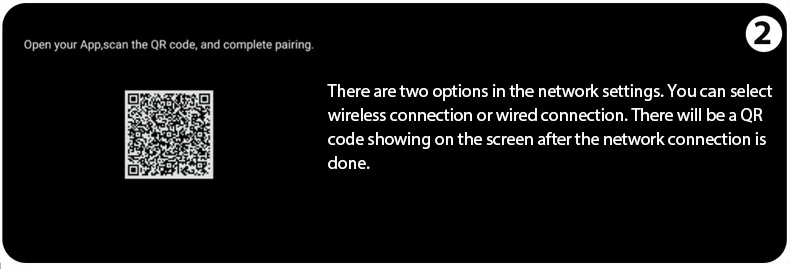

(2) There are two options in the network settings. You can select wireless connection or wired connection. There will be a QR code showing on the screen after the network connection is done.

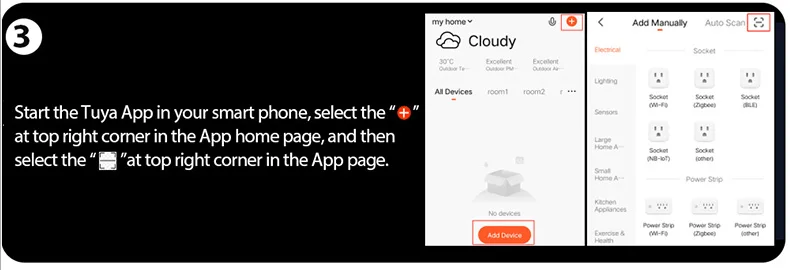

(3)  Start the Tuya App in your smart phone, select the ” +” at top right corner in the App home page, and then select the ” scan”at top right corner in the App page.  Scan the QR code on the screen of the product to add it into the Tuya App. You will find an S8E panel icon in your App.

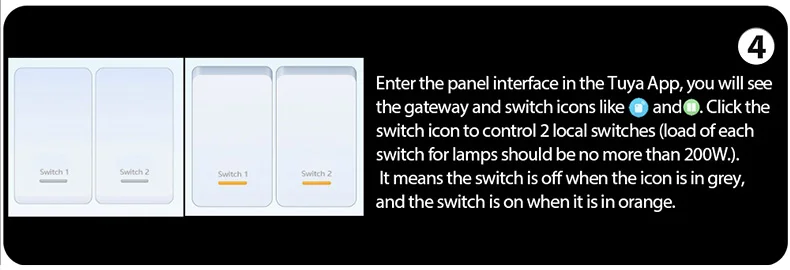

(4)  Get into the product interface in the Tuya App, you will see the gateway and switch icons like  and . Click the switch icon to control 2 local switches (load of each switch for lamps should be no more than 200W.). It means the switch is off when the icon is in grey, and the switch is on when it is in orange.

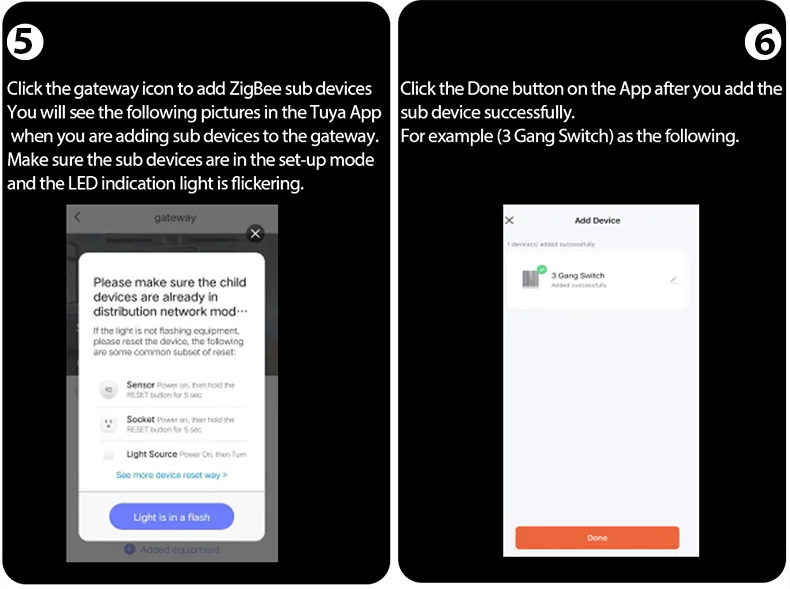

(5).  Click the gateway icon to add ZigBee sub devices.Make sure the ZigBee sub devices are in the set-up mode. The gateway will search and add the sub devices automatically. You can follow the user manual of the sub devices to make sure it is in set-up mode. (Usually it is long press the power button or the reset button in 5s, then the LED indication light flickering which means it is in the set-up mode.)

(6) Click the finish button on the App after you add the sub device successfully. For example (2 switches panel) as the following.

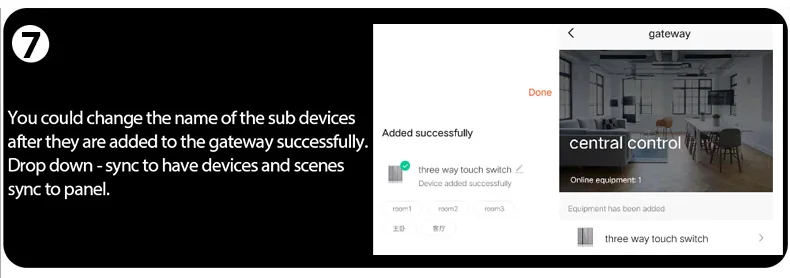

(7) You could change the name of the sub devices after they are added to the gateway successfully.

(8) You could change the device type by getting into the device interface in the App. It means the switch is off when it is in grey, and the switch is on when it is in green. You could also set up timers(Schedule) for the switches to realize the automation control.

(9) If you want to add your devices faster,click the” +” and then select the “scan “to add corresponding devices manually,finally drop down the list on panel and click “sync” to stay sync with App.
